Electrical Components for Turnstiles - Replacement Electronics for:
ROBOT INDUSTRIES - BURLE INDUSTRIES - PHILIPS CSS - DEARBORN ACCESS CONTROL - TOMSED/BOON EDAM
|
|
Pedestrian Control & Automation Solutions 30 Years of Turnstile Control System Design and Service |
Replacement Components for Robot, Burle & Philips STG Style Turnstiles Replacement Control Boards, PLC's, Rotation Detection Switches, Solenoids, & Transformers for Tomsed & Boon Edam Turnstiles |
 |
|
|
|
|
Replacements and Upgrades
|
Item
|
Description
|
Part
Number
|
Price
Each
|
||
 |

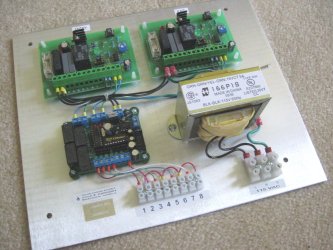

Upgrade Controller assembly for Robot, Philips, Burle & Dearborn Full Height Turnstiles (except MD, Metal Detector equipped), including STG, CSTG and ASTG Turnstile Models. This upgrade kit completely replaces any relays, FP0 type PLCs, and power supply that your present turnstile has installed. A new life for your turnstile. Installation is straight forward and simple. Helps extend the life of your solenoids by providing them the proper operating voltage. The PUPKIT is Designed and Manufactured by XIS Controls Now Available - PUPKIT/MD - Special version of the PUPKIT allows the interfacing of a Metal Detector or other secondary sensor. Activation of this feature causes an immediate lockdown of the turnstile. Same price as the standard PUPKIT. |
PUPKIT
Installation Manual
|
$990.00 (115VAC) $1070.00 (230VAC) |
||
|
Original Brochure
|
|||||
 |
Exact Replacement PLC for Philips
& Dearborn full height legacy turnstiles equiped with an FP0-C10RS
style PLC.
For additional PLC types |
PPLCO (51-215) or PLC 8.03 |
$690.00
|
||
 |
Turnstile Control Board 6.1 replaces all versions (Version 1 thru MCB 5.0) of the Tomsed & Boon Edam waist high and full height turnstile control board. Neither Pulse nor Timeout relay daughter boards are required. These functions are now incorporated in the main board as standard. Designed by the same team that created all the previous versions. This board is a combination in a single board of the former 30-001, 30-002, & 30-003 Used in turnstile series models: TUT-50, TUT-60, TUT-65, TST-75, THT-100 Hookup |
TCB 6.1 |
Configurations |
||
|
1 - PUPKIT $195.00 |
|||||
|
2 - Tomsed/Boon $198.00 |
|||||
|
3 - Type 2 w/override $201.00 |
|||||
 |
Do you have a Tomsed THT-100MT. This is a 4 arm rotor turnstile with 2 sections closed off. This "Man-Trap" turnstile was designed to be a 2-stage entry device for use with an intermediate biometric reader or other secondary authentication device. These turnstiles require a key reset upon restoration from a power loss. They are identified as having 3 solenoids in the top channel. XIS Controls has designed an automatic reset device that eliminates the need to send personnel to the turnstile to perform a manual reset every time you have a power blip. A simple 4 wire hookup is all that is required. |
MT-BOOT
|
$178.00
|
||
 |
Replacement PLC for PUPKIT |
E10-PUP1
|
$495.00
|
||
|
|
NOW IN STOCK Exact OEM Shock Absorber for all Tomsed/Boon Edam Waist High Turnstiles: Models TUT-50, TUT-65, TUT-60, TST-75. Fresh Stock - No dried out elastomers. 45-018ASBY is complete and pre-assembled. It includes: 45-018E Shock Absorber, 45-022 Shock Absorber Yoke, HPO.12X.25A Roll Pin, 45-022P Yoke Pin and two 45-020 Shock Mounting Nuts. |
45-018ASBY
|
$232.00
|
||
 |
Shock Absorber for Robot, Burle & Philips Full Height and Waist High Turnstiles. Does your turnstile slam to a stop or bounce back? It's time to replace your shock absorber. This shock absorber was designed with a specific hydraulic fluid for this application and cannot be replaced by an off-the-shelf look alike. Long term shelf storage ages the packing elastomers and results in leakage of hydraulic fluid. Accept no shock absorber that has been sitting around. We have fresh stock by the original manufacturer. |
85-156
|
$244.00
|
||
 |
24VDC Replacement solenoid for all Robot, Burle and Philips full height turnstiles. This new style solenoid comes complete with an integral PWM (Pulse Width Modulation) "Pick & Hold" circuit (here shown as the black cylindrical housing). Please observe polarity when connecting to the controller. This part can sometimes be marked 57305-60.
|
85-225
|
$150.00 |
||
 |
Above 85-225 Solenoid as a complete assembly.
|
86-141
|
$295.00 |
||
 |
Back Diode used with Robot, Burle, & Philips Solenoids. Helps to reduce back EMF created when inductive loads are switched. Back EMF is responsible for contact arcing and pitting. Package of 2. |
53-541
|
$1.50
|
||
 |
Solenoid Plunger Return Spring for above Solenoid Assembly |
85-213
|
$9.00
|
||
 |
Solenoid Linkage for above Solenoid Assembly - Replaces the prior fragile nylon version. Non-ferrous aluminum construction does not interfere with the solenoid's magnetic field. |
85-221
|
$28.00
|
||
 |
Tomsed & Boon Edam Replacement Solenoids for all 24VDC Full Height (aka LT12X19-C-24) and Waist High (aka LT12X13-C-24) Turnstiles. Full Height Turnstile solenoids marked LEDEX - Saia/Burgess can use 101-008 as a direct substitute since this was the original solenoid supplied with THT-100 models. 12VDC Solenoids for TUT-65 Battery Operated/Wheelable Turnstiles available on Special Order |
46-001 Waist High |
$135.00
|
||
|
101-008 Full Height |
$139.00
|
||||
 |
TCB 6.0 Replacement Fuses. (will also be suitable for Tomsed/Boon Edam boards) 5 X 20 MM - 2 Amp - SloBlo |
T2A
|
$6.00/5 Fuses
|
||
|
TCB 6.1 Replacement Fuses. 5 X 20 MM - 3 Amp - SloBlo |
T3A
|
||||
 |
|
PTF7
|
$2.50
|
||
 |
Stationary Roller Actuator found on Burle and Philips Turnstiles Screw Terminals Also replaces part # 81-152 |
21-113
|
$52.00
|
||
| These microswitches are identical to the Burle/Philips 21-113 in every respect except that these have solder terminals in place of the regular screw terminals. They will mount and operate properly when installed as the Rotation or Limit Switch in Burle and Philips Turnstiles. We will provide a free 2 position terminal strip for you to make the interconnection. |
21-113S
|
$30.00
Only 6 Left |
|||
 |
Folding Roller Actuator found on Robot and early Burle Turnstiles Screw Terminals |
53-520
|
$84.00
|
||
 |
Simulated Roller Lever: Locking Bar Switch for Philips STG Series Full Height Turnstiles (Light Control) Limit Switch for Burle/Philips/Tomsed/Horton Slide Gates Limit Switch for RLT Series Waist High Turnstiles |
53-873
|
$34.00
|
||
|
Type A
Type B |
Rotation Detection Microswitch for Reset Function - Waist High Tomsed & Boon Edam Turnstile Models: TUT-50, TUT-60, TUT-65, TST-75
There are 2 types: Type A is a 2 part assembly of microswitch body with the add-on one-way roller accessory. Type B is a one piece switch with integral roller actuator. Types A & B are fully interchangeable. Can be used in either clockwise and counter clockwise positions.
Individual parts For Type A may be purchased below |
46-006-A or 46-006-B |
$62.00
|
||
|
Type A Rotation Reset Microswitch. These can be used as the Rotation Reset Switch when you have an attached roller activator accessory. For Tomsed and Boon Edam Turnstiles, the roller accessory is JV-30 One-Way Roller with Short Lever. Alvarado EDC Waist High Turnstiles - Switch body is Alvarado Part Number 10-1400-1. Switch lever is Alvarado Part Number 10-1450-1 |
46-006-SW
|
$16.00
|
||
 |
JV-30
|
$46.00
|
|||
 |
Microswitch Assembly (ASBY) Kit Create a 46-006ASBY when added to the 46-006 Microswitch or a 101-012ASBY when added to a 101-012 Microswitch as shown below. Kit consists of: (1) 30-006 Microswitch Mounting Plate, (1) 101-015 Insulator, (2) HSS4-40X.56A Screws, (2) HWZ4D internal lock washers. |
MS-ASBY-Kit
|
$16.00
|
||
 |
One-Way Roller Long Lever Microswitch used in most Tomsed & Boon Edam Full Height Turnstiles as the rotation detection switch. Model THT-100 Can be used in either clockwise and counter clockwise positions. |
101-012
|
$62.00
|
||
 |

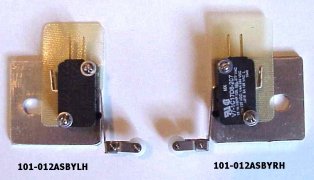

Above Microswitch with Mounting Plate and Insulator Both Left Hand (101-012ASBYLH) and Right Hand (101-012ASBYRH) can be configured by simply remounting the microswitch and insulator on the reverse side of the mounting plate |
101-012ASBY
|
$78.00
|
||
 |
Two-Way Roller Long Lever Microswitch used in most Tomsed & Boon Edam Full Height Turnstiles as the solenoid activation switch. Can be found in various other models as a special application microswitch. These incluse the TST-75DA (Drop Arm) and the THT-100MT (Man Trap). Often incorrectly listed as 101-013E. This is the part number for the switch mounting bracket when used as a solenoid activation switch. |
101-013
|
$38.00
|
||
 |
Green 24VDC LED Lamp for Tomsed & Boon Edam TUT-50, TUT-60 & TST-75 Waist High Turnstiles 11/16" Clearance Hole - Comes with mounting hardware |
46-008
|
$34.50
|
||
 |
Red 24VDC LED Lamp for Tomsed & Boon Edam TUT-50, TUT-60 & TST-75 Waist High Turnstiles 11/16" Clearance Hole - Comes with mounting hardware |
46-009
|
$34.50
|
||
|
|

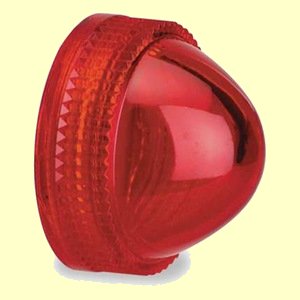

Status light indicator styles and sizes for Robot, Burle & Philips Turnstiles have changed many times during the years. These are the 30 mm mounting hole diameter size units. They are new but old stock from
the original factory supply. Suitable for outdoors when used with the
included gaskets. Price includes either Red or Green lens. #757 - 28V incandescent lamp not included. (Amber lens also available). Lamp bases are polarized and can also accept Allen-Bradley 24VDC series 800T LED lamps |
Red 53-586-R |
$68.00
|
||
|
Green 53-586-G |
$68.00
|
||||
 |
NEMA 12 Single Hole Enclosure for 30mm diameter Lights or Pushbuttons. These enclosures have a 1/2" conduit hole pre-drilled at the bottom. |
53-221
|
$26.50
|
||
 |
#757 Mini Incandescent Indicator Lamp for above
status lights. |
757-I
|
$4.00
|
||
  |
Normally Open Momentary Green Pushbutton Assembly (shown dissasembled). Fits 30mm box above. Often used as an Exit Pushbutton. Comes assembled with 53-282 Pushbutton Operator and 53-237 Single Pole N.O. Contact Block. For the technical minded - These are Form X, Double Make to minimize arcing. Available in Red in limited quantities. |
53-282ASBY
|
$58.00
|
||
 |
NEMA 12 Screw Cover Blank Box 4"W
x 4H" x 6L. No Holes. Picture at left is representative and not
geometrically accurate. Suitable for Two Lamps, or Pushbuttons or as
a general purpose enclosure for indoor or outdoor applications.
|
53-208
|
$47.50
|
||
 |
Lost your Key to get into your Tomsed/Boon Edam Turnstile cabinet. Don't drill out the lock. We got them. Fits Illinois HL300 Cam Lock part # 100-447 |
HL300-KEY
|
$6.50
|
||
 |
DPDT Control Relay (recertified) Found in Robot & Early Burle Turnstiles Please Note: These relays employ a Magnetic Blowout feature that serves to preserve the life of the contacts. The contact sets have polarity markings that should be observed. For maximum effectiveness, do not alter the factory wiring or substitute similar looking relays. |
53-521
|
$88.00
|
||
 |
Direct Replacement Time Delay Relay with Digital Time Selection Found in Robot & Early Burle Turnstiles |
53-566
|
$115.00
|
||
 |
Replacement "Ice-Cube" Relay for Tomsed Control Boards: TCB 1, TCB 2, MCB 3 (aka MT-018-1) and MCB 4 (Aka MT-018-1 Rev A) Not for MCB 5.0 and after |
30-001-K1
|
$27.25
|
||
 |
Replacement motor control relay for Philips and Tomsed slide gates Including models: AHSG, SHSG, CHSG & THG-51SG The Slider Mechanism and Controller were/are manufactured by Horton Automatics. |
C8166 Schematic
|
Call for
Pricing
|
||
 |
Bridge Rectifier Used on many Robot, Burle and Philips Turnstiles and Sliding Gates. Also found in Alvarado MST, MSTX, EDC & EDCX - 4X, 5X & 6X -- Alvarado Part # 10-4050 |
53-523
|
$28.70
|
||
 |
Original Power Transformer for Un-upgraded Robot, Burle and Philips Full Height Turnstiles. Not to be used with 86-292 or PUPKIT Upgrade Kits. 110/220 Primary - 12VAC & 24VAC Secondaries These are old stock, never used, fully tested and inspected to verify that they meet the original factory specifications.
|
53-791
|
$187.50
|
||
 |
110VAC Tomsed & Boon Edam Replacement Transformers for all Full Height (aka P-8693) and Waist High Turnstiles (aka P-8691) Non-standard and 220VAC versions available on request Caution: The factory has been substituting part number 101-009. This is a 20VAC transformer instead of the correct 18VAC transformer. Although this will work, you may experience premature solenoid failure as a result. |
46-004 Waist High |
$65.00 |
||
|
101-010 Full Height |
$66.45 |
||||
 |
18VAC - 5amp Transformer Used in 86-292 & PUPKIT Upgrade Kits Used in some USA Version Boon Edam Waist High Tripod Turnstiles with Drop-Arm Feature |
86H-291-H
|
$70.00
|
||
 |
Original Factory Stock Transformer for HSG Series Sliding & Swing Gates - Lock Power Supply - Including models: AHSG, SHSG, CHSG & THG-51SG Suitable as a replacement transformer for Burle & Philips Waist High Turnstiles that use: Secondary - 24VAC @ 25 VA (1 amp.) |
115VAC Primary 53-425 |
$37.00
|
||
|
230VAC Primary 53-677 |
|||||
 |
Voltage Regulator Module Used in 86-292 Upgrade Kit only |
P624
|
$52.90
|
||
 |
Bottom Thrust Bearing for Tomsed & Boon Edam Full Height Turnstiles. These are the original German made bearings, not the Chinese made version which has sometimes been substituted by the factory. |
100-040
|
$294.00
|
||
|
|
Bearing for all Tomsed/Boon Edam Waist High Turnstiles. 1" ID |
45-019
|
$147.00
|
||
|
Top Bearing for Tomsed/Boon Edam Full Height THT-100 Turnstiles without Speed Control. 1.25" ID |
100-041
|
$168.00
|
|||
|
Top Bearing for Tomsed/Boon Edam Full Height THT-100 Turnstiles with Speed Control. 1.5" ID |
100-042
|
$187.50
|
|||
  |
3 Hole Bearing Flange for all Tomsed Waist High Turnstiles. Goes with Bearing 45-019. Set of 2 |
45-019F
|
$44.00
|
||
| 3 Hole Bearing Flange for Tomsed Full Height Turnstiles. Non-Speed Control. Goes with Bearing 100-041. Set of 2 |
100-041F
|
48.00
|
|||
| 4 Hole Bearing Flange for Tomsed Full Height Turnstiles. With Speed Control. Goes with Bearing 100-042. Set of 2 |
100-042F
|
54.00
|
|||
 |
Cam Clutch for Robot & Early Burle Full Height Turnstiles Special Order: 2-3 weeks |
81-131
|
$275.00
|
||
 |
|
||||
Please
be advised that connecting this solenoid to older style controllers
with voltages above 28VDC may cause premature failure and will void
all warranties
